Sheet Metal Bending: A Practical Guide for Fabrication Shops

Sheet metal bending is how most fabrication shops turn flat laser-cut parts into brackets, channels, covers and enclosures. It's also where a lot of quoting goes wrong. The press stroke takes seconds, but setup, tooling and handling can take far longer, and a part that looks simple on a drawing may not be possible to bend on your press at all.

This guide covers how the sheet metal bending process works, the terms that matter, what affects bend quality, and how to quote bent parts so the price reflects the whole job and not just the cutting.

Why bending matters to a job shop

Shops offer bending for a simple reason: that's where much of the money is. A lot of laser cutting work arrives as cut-and-fold, and a shop that can't fold often doesn't get invited to quote the job at all.

It adds up. In one small single-laser shop we work with, folding brings in roughly $15,000 for every $80,000 of cutting, close to 20% on top of cutting revenue. With an efficient setup and a good press brake operator, bending can carry better margins than cutting. Priced badly, it quietly eats the profit from the laser.

What is sheet metal bending?

Sheet metal bending is the process of forming a flat sheet along a straight line into an angle, so it holds a new shape. Repeat it along several lines and a flat blank becomes an angle bracket, a U-channel, a box or a full enclosure.

Most bending in fabrication shops is done on a press brake, a machine that forces the sheet between a punch (the top tool) and a die (the bottom tool). Some shops also use folding machines or panel benders, which clamp the sheet and swing the flange up. In many countries, "folding" and "bending" are used almost interchangeably.

How the sheet metal bending process works

A typical formed part goes through these steps:

1. The flat blank is cut, usually on a laser, from a flat pattern that allows for the material stretching in each bend.
2. Bend lines, directions (up or down) and the bend sequence are worked out, either by the press brake programmer or in offline software.
3. Tooling is selected and set up on the press: the punch and die to suit the material, thickness and inside radius.
4. The operator positions the part against the backgauge stops and the press forms each bend in sequence.
5. The operator checks the angle and dimensions, and adjusts for springback.

The press stroke is the quickest part of that list. As one shop owner put it: "The stroke time is nothing. It's setup and handling."

Common sheet metal bending methods

Air bending

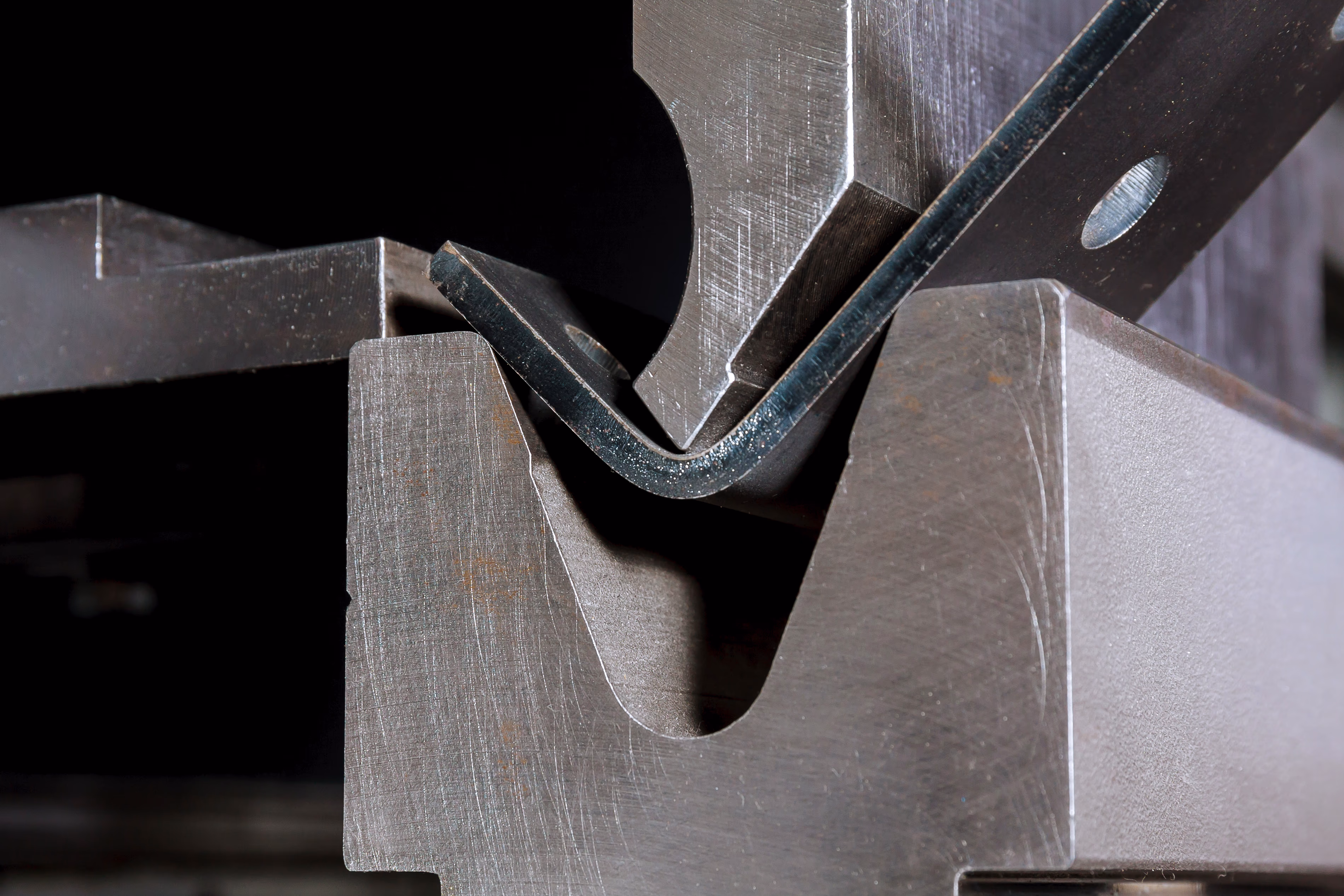

Air bending is the most common method. The punch pushes the sheet into a V-shaped die without forcing it to the bottom, so the sheet touches the tooling at three points: the punch tip and the two die shoulders. The bend angle is set by how deep the punch goes, which means one set of tools can produce many angles. Because the sheet isn't fully pressed into the die, it springs back, and the operator has to compensate.

Bottoming

In bottoming, the punch presses the sheet down onto the die so it takes the die's angle. It needs more force than air bending, but gives more consistent angles and less springback.

Coining

Coining uses much higher force to press the sheet into the die, forcing the bend tighter than its natural radius. It's precise, with almost no springback, but it's hard on tooling and needs a lot of tonnage. It's much less common in general job shop work.

Hems and safety folds

A hem folds the edge of the sheet back on itself to give a safe, stiff edge. A safety fold (or open hem) leaves a small gap. Both are usually done in two stages: a sharp bend with an acute tool, then a flattening step.

Key terms in sheet metal bending

What affects bend quality?

Material and grain direction

Different materials bend very differently. Mild steel is forgiving. Stainless springs back more. Harder aluminium alloys and tempers, such as 5083, can crack if the bend runs the wrong way relative to the grain.

The grain that matters is the crystalline grain from rolling, not the surface finish, which catches people out. Grain direction has to be considered when the part is placed on the sheet for cutting, not when it reaches the press brake. By then it's too late. Designers are often unaware of it, so the shop needs to catch it at the quoting or nesting stage.

Thickness, bend length and tonnage

The force needed to bend a part rises with thickness and bend length. A press that handles a 1 m bend in 6 mm steel may not have the tonnage for the same bend at 3 m. Quoting a part your press can't form is one of the most common mistakes in bending.

Bend radius and tooling

The die opening and punch radius set the inside radius. Tighter radii need more force and are more likely to crack. Designs that use several different radii on one part need more tool changes.

Reach and clearance

Some parts can't be bent because of the tooling, not the force. The press needs enough throat depth to reach the bend. And as a part is bent up, already-formed flanges can collide with the punch or the machine. Deep boxes and return flanges often need special tooling, such as gooseneck punches.

Part design

Holes too close to a bend line distort. Flanges that are too short can drop into the die. Symmetrical parts are easier for operators to get the right way round. Our tips for folding and bending laser cut parts cover the main design rules.

The flat pattern

If the K-factor or bend deduction is wrong, the flat blank is cut to the wrong size and the finished part comes out short or long. That's a common problem when the flat pattern produced at quoting is reused for production. For anything other than mild steel, check the unfold uses the right values for that material and thickness. For a cover on a ute, a millimetre won't matter. For a precision part, it will.

Why bending matters when quoting sheet metal parts

Quoting a bent part means answering two questions. What will it cost? And can we actually make it?

What it costs: setup plus handling

The price of bending splits into setup time and bending time.

Setup starts with getting the right punches and dies from the rack. Then it often means setting up several stations along the press. On a 3 m press brake, a part may need three or four setups to complete. Take a 500 x 300 mm tray with flanges on all four sides. The 500 mm sides need a 500 mm tool, but once they're bent, a 500 mm tool would crush them when you turn the part round for the 300 mm sides. So you need a 500 mm station and a 300 mm station. Parts with folds inside other folds can need more.

Some setups add further steps. A bend at an angle to the edge of the part needs a guide on the bed so the part can be positioned correctly. A split fold (where the two ends are bent but the middle isn't) needs an extra stop to locate the part sideways.

Bending time is mostly handling, not pressing. One customer told us a story about a part they quoted with Tempus Tools that was almost 3 m long in 1.6 mm brushed stainless. "It's like trying to fold a piece of tissue paper," was how it was described. It couldn't be scratched, so it couldn't be dragged across tables. It needed three people to lift, a protective film on the tooling, and a full flip part-way through because some bends went the other way. That flip was the most expensive move in the whole job.

Large parts also slow things down at the backgauge. With three or four stops across a long part, you often need a second person to check it's hard up against every stop before the operator presses the pedal.

Can you make it?

The harder question is feasibility. Before quoting a formed part, a shop needs to know:

• Does the press have enough tonnage for this thickness and bend length, without damaging the tooling?
• Does it have the reach (throat depth) and tooling to get to each bend?
• Can each bend be reached without the part hitting the tooling, given the design?
• Are there manufacturability issues, like holes too close to bends?

Without a simulation, many shops add up the bends, allow 10% extra and hope. The risk is quoting a part that can't be folded at all.

In smaller shops, the usual answer is to walk out and ask the press brake operator. That interrupts production. If the operator has to simulate the part on the press controller, that can cost 30 minutes of machine time for one quote. Experienced operators can often look at a drawing and tell you it won't work, but that's not a reliable basis for quoting either. (We've written before about keeping your press brake operator out of quoting.)

Shops with offline press brake programming software can run a simulation on complex parts before they quote. That confirms the part can be bent and gives realistic bend times to price from.

Common quoting mistakes with bent parts

• Pricing only the cutting and treating a formed part like a flat one
• Assuming one setup covers every bend
• Forgetting the handling time for large, thin or cosmetic parts, including extra people, flips and protective film
• Quoting a bend length and thickness the press doesn't have the tonnage for
• Missing collisions and reach problems that make the part impossible to form
• Leaving out other secondary processes on the same part, like welding, countersinking or powder coating
• Pulling the press brake operator off the machine to estimate every job

How shops can price bending more consistently

Most of the cost of bending is predictable if you have rules for it. Part size, weight and the number of bends drive setup and handling time, and those can be priced the same way every time instead of from memory.

A practical example is a handling allowance based on area: once a part exceeds a set size, say 4 square metres, the rule adds time for a second or third person. Heavier parts, cosmetic finishes that can't be scratched, and parts needing a flip can carry similar allowances.

Tempus Tools lets shops set up secondary process pricing for folding, welding, powder coating and other steps, priced from each part's properties, so bending lands on the same quote as the cutting instead of being added by hand. For customers who send 3D models, the 3D sheet metal extractor unfolds STEP and IGES files into flat parts ready to quote. See how it fits together for sheet metal shops.

Rules won't answer the feasibility question on complex parts. That still needs an experienced eye or a simulation. But they take the guesswork out of routine bent parts, and they stop the estimator walking out to the press brake for every quote.

Sheet metal bending and the production handoff

Once a quote is accepted, the information that went into it needs to reach the floor. For bent parts, that means:

• The correct flat pattern for cutting, unfolded with the right K-factor for the material
• The part's orientation on the sheet if grain direction matters
• Bend directions, sequence and any notes on special tooling or handling
• Part labels so operators can match cut blanks to the right job
• Work orders that show which parts need folding and which go straight to dispatch

When that information is missing, the operator works it out again from the drawing, which repeats work done at quoting and invites mistakes. Production documents generated from the quote carry the job details through, so the floor works from the same information the price was based on.

Price the whole formed part

Sheet metal bending is one of the most valuable services a job shop can offer, and one of the easiest to underprice. The press stroke is quick. Setup, tooling, handling and the question of whether the part can be bent at all are where the time and risk sit.

Quote formed parts on the full workflow: cutting, setup, handling and every other process the part needs. Use rules for the routine work, and save the operator's time and the simulation for the parts that need it.

Frequently asked questions

What is sheet metal bending?

Sheet metal bending is the process of forming flat sheet along a straight line into an angle, using force from a press brake or folding machine. Several bends turn a flat blank into brackets, channels, trays and enclosures.

What machine is used for sheet metal bending?

Most shops use a press brake, which forms the sheet between a top punch and a bottom die. Folding machines and panel benders are also common, particularly for long, thin sheet. The machine's tonnage, bed length and throat depth decide which parts it can bend.

What is bend radius in sheet metal?

Bend radius is the radius of the curve formed at a bend, usually measured on the inside. In air bending it's set mostly by the die opening. As a starting rule, keep the inside radius at least equal to the material thickness to avoid cracking.

What is bend allowance?

Bend allowance is the length of material that goes into a bend, measured along the neutral axis. It's added to the flange lengths to calculate the flat blank size, and it depends on the material, thickness, bend radius and K-factor.

Why does bending affect the price of a sheet metal part?

Bending adds setup, tooling changes, operator time and handling, and large or cosmetic parts may need extra people. The press stroke itself is quick, so the cost depends on how many setups the part needs and how hard it is to handle.

How do fabrication shops quote bent parts?

Good quotes check feasibility first (tonnage, reach and tooling), then price setup and handling alongside the cutting. Many shops use pricing rules based on part size, weight and bend count, and run complex parts through bending simulation software before committing to a price.
